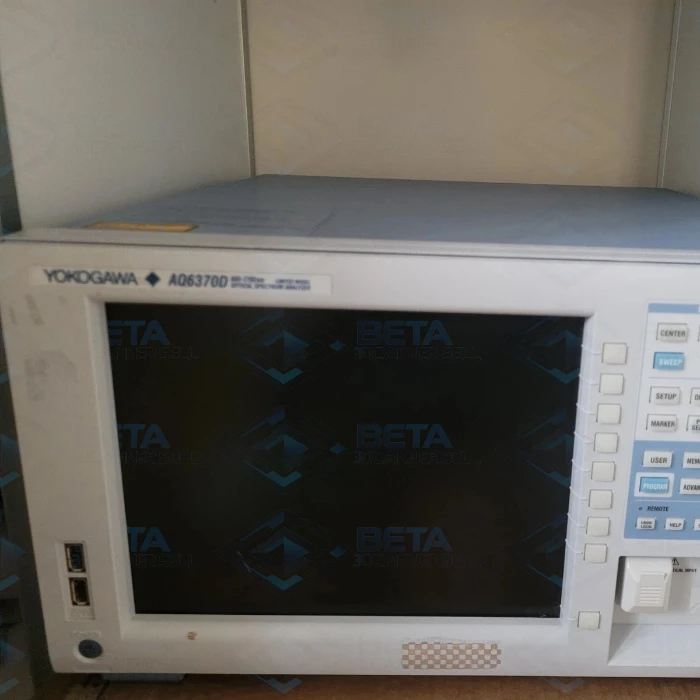

Yokogawa Ando AQ6370D Optical Spectrum Analyzer (600–1700 nm)

The Yokogawa Ando AQ6370D is a premier telecom-class Optical Spectrum Analyzer (OSA) engineered for high-precision optical component characterization and transmission system analysis. Covering a versatile wavelength range of 600 to 1700 nm, it provides world-class spectral resolution and close-in dynamic range, making it an indispensable instrument for optical R&D labs and industrial manufacturing facilities.

Built on advanced diffraction grating technology, the AQ6370D features an optimized monochromator that delivers a high optical resolution down to 0.02 nm and an ultra-high close-in dynamic range of 78 dB (typical). With support for both single-mode and VCSEL-sourced multi-mode optical fibers, the AQ6370D easily evaluates optical transceivers, laser diodes, optical amplifiers, and DWDM network signals with outstanding measurement speed.

Key Reasons to Choose the Yokogawa AQ6370D

• Wide Wavelength Coverage (600–1700 nm): Perfectly suited for telecom applications across the VIS, O, E, S, C, L, and U bands.

• Ultra-High Resolution & Dynamic Range: Achieves up to 0.02 nm resolution and a 78 dB typical close-in dynamic range, enabling precise discrimination between tightly spaced optical peaks.

• High Wavelength Accuracy (±0.01 nm): High-precision internal calibration sources ensure reliable, repeatable spectral measurements.

• Fast Measurement Speed: Rapid sweep times as fast as 0.2 seconds over a 100 nm span significantly boost production line throughput.

• Built-In Automated Analysis Functions: Integrated analysis routines for WDM signals, OSNR, EDFA gain/noise figure, laser diode parameters, and filter passbands.

• Free-Space Optical Input: Allows convenient connection for both single-mode (SM) and multi-mode (MMF) fibers without risking connector core degradation.

Technical Specifications:

• Wavelength Range: 600 nm to 1700 nm

• Wavelength Accuracy: ±0.01 nm (High-Performance Model) / ±0.02 nm (Standard Model)

• Wavelength Resolution Setting: 0.02 nm to 2.0 nm

• Dynamic Range: 78 dB typical (peak ±1.0 nm, resolution 0.05 nm)

• Level Sensitivity Range: -90 dBm to +20 dBm

• Sweep Time: Approx. 0.2 seconds (100 nm span)

• Applicable Fiber Types: Single-Mode (9.5/125 µm) and Multi-Mode (50/125 µm, 62.5/125 µm)

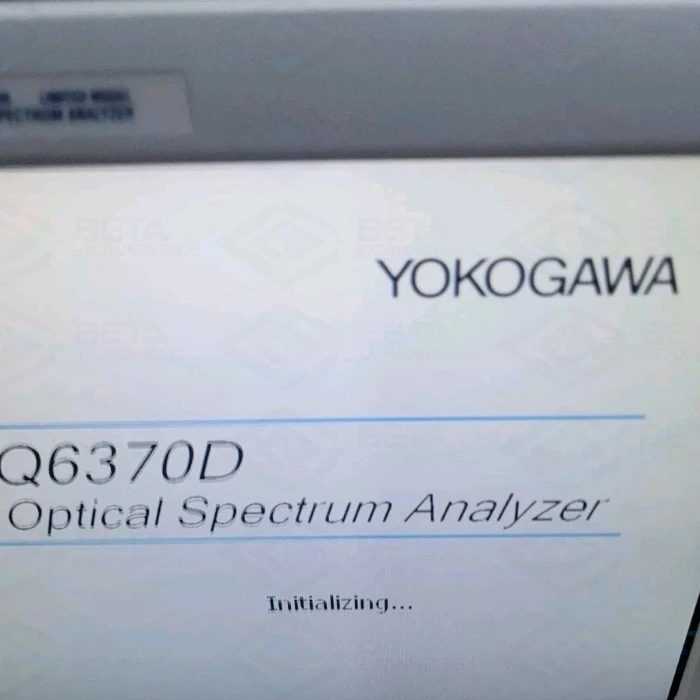

• Display: 10.4-inch color LCD (800 × 600 resolution)

• Interfaces: GP-IB, Ethernet (TCP/IP), RS-232, USB, SVGA video output

Ideal Applications:

• Optical Active Components: Testing laser diodes (DFB-LD, FP-LD, VCSEL), optical transceivers, and TOSAs.

• Optical Fiber Amplifiers: Evaluating Gain, Noise Figure (NF), and Amplified Spontaneous Emission (ASE) in EDFAs.

• WDM & DWDM Systems: Simultaneous multi-channel peak wavelength, signal level, and OSNR measurement.

• Passive Optical Devices: Spectral response testing of FBG, WSS, ROADM, optical filters, and couplers.

What’s in the Box:

• 1x Yokogawa Ando AQ6370D Optical Spectrum Analyzer

• 1x Power Cord

• 1x Optical Connector Adapter

• Quick Reference Manual & Safety Documentation
