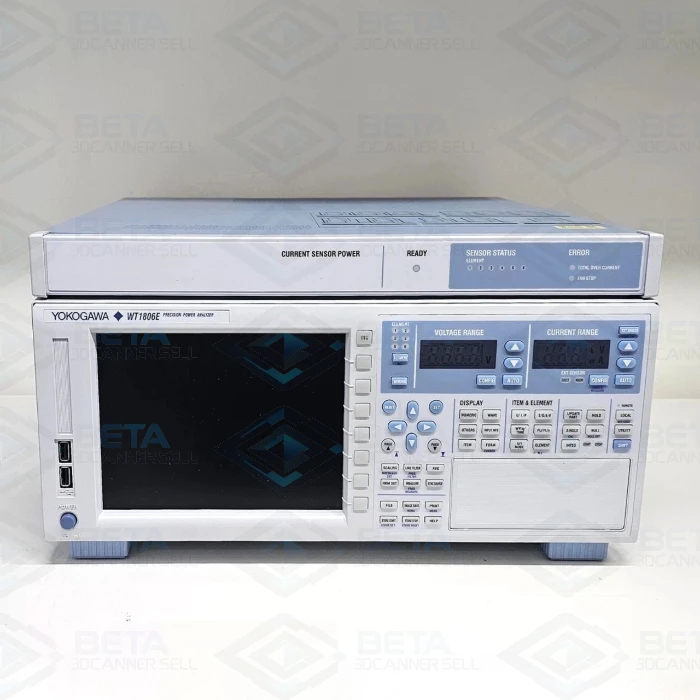

Yokogawa WT1806E Precision Power Analyzer (-5A0 -50A6 -HE -D /EX6 /G5 /PD2)

When evaluating complex power electronics, EV powertrains, solar inverters, and high-efficiency motor drives, the Yokogawa WT1806E provides uncompromising accuracy and measurement flexibility. Built with a guaranteed basic power accuracy of ±(0.05% of reading + 0.05% of range), this 6-channel precision power analyzer allows simultaneous sampling across multiple voltage and current inputs at 2 MS/s (16-bit resolution).

This specific configuration features 6 direct 50A current input elements (-5A0 -50A6) along with factory-installed performance options—including Harmonic Measurement up to the 500th order (/G5), External Sensor Inputs for all 6 channels (/EX6), and an Internal DC Power Supply for AC/DC current sensors (/PD2). Combined with an 8.4-inch XGA screen and robust power integration modes, the WT1806E is the premier benchmark for industrial power quality and efficiency characterization.

Key Reasons to Choose the Yokogawa WT1806E

• 6-Channel High-Capacity Configuration (-5A0 -50A6): Equipped with 6 direct 50A current input elements to evaluate complex 3-phase multi-load environments, such as inverter input/output and multi-motor drives simultaneously.

• Guaranteed Precision Accuracy: Delivers 0.05% basic power accuracy across a wide measurement bandwidth from DC and 0.1 Hz to 1 MHz.

• Advanced Harmonic Analysis (/G5 Option): Measures up to the 500th harmonic order (at 50/60 Hz fundamental) to evaluate Total Harmonic Distortion (THD), harmonic components, and power quality compliance in real time.

• External Current Sensor Inputs (/EX6 Option): Enables direct connection for external current sensor boxes and current clamps across all 6 input channels.

• Integrated Sensor DC Power Supply (/PD2 Option): Features a built-in DC power supply to directly drive external high-precision CT-series AC/DC current transducers without requiring external bulk power supplies.

• High-Speed Data Capture & 8.4″ Display: High-resolution 8.4-inch color LCD displays split-screen waveforms, numeric parameter grids, vector diagrams, and trend plots effortlessly.

Technical Specifications:

• Model: WT1806E Precision Power Analyzer

• Input Elements Configuration: 6 Channels with 50 A Direct Input Elements (-5A0 -50A6)

• Basic Power Accuracy: ±(0.05% of reading + 0.05% of range)

• Sampling Rate: 2 MS/s (16-bit resolution)

• Measurement Bandwidth: DC, 0.1 Hz to 1 MHz (5 MHz frequency bandwidth typical)

• Voltage Input Range: 1.5 V to 1000 V RMS (Crest Factor 3)

• Current Input Range: 1 A to 50 A RMS direct (up to 55 A peak)

• Harmonic Analysis (/G5): Up to 500th order of 50/60 Hz fundamental frequency

• External Sensor Inputs (/EX6): Dedicated external current sensor inputs installed on all 6 channels (50 mV to 10 V outputs)

• Sensor Power Supply (/PD2): Internal DC power supply output for external AC/DC current transducers

• Header / Regional Specs: English Display (-HE), UL/CSA Standard Power Cord (-D)

• Display: 8.4-inch Color TFT XGA LCD

Installed Options Breakdown:

• -5A0 -50A6: 6 Channels equipped with 50 A High-Current Input Elements

• -HE: English Display & Panel Interface

• -D: UL/CSA Power Cord standard

• /EX6: External Current Sensor Inputs on 6 Channels

• /G5: Advanced Harmonic Measurement Mode

• /PD2: Internal DC Power Supply for CT Series Current Sensors

Ideal Applications:

• EV & HEV Powertrain Diagnostics: Simultaneous measurement of inverter inputs, motor outputs, and battery charge/discharge efficiency.

• Renewable Energy & Photovoltaic Inverters: High-precision efficiency evaluation and harmonic compliance testing for solar and wind power conversion.

• Industrial Inverters & Variable Frequency Drives (VFDs): Characterizing power factor, harmonic distortion, and electrical losses in industrial drives.

• Power Quality & Grid Compliance: High-order harmonic measurement and energy integration diagnostics.

What’s in the Box:

• 1x Yokogawa WT1806E Precision Power Analyzer (-5A0 -50A6 -HE -D /EX6 /G5 /PD2)

• 1x Standard AC Power Cord

• 1x Terminal Rubber Caps / Safety Covers

• Quick Reference Manual & Safety Documentation
