The 3Z Telecom RFA-1000 is an industry-standard antenna alignment tool engineered specifically for telecom tower riggers, network installers, and RF engineers.

Designed to accurately measure antenna position during 3G, 4G, 5G, and microwave installations, the 3Z Telecom RFA-1000 measures Azimuth, Tilt, Roll, and Elevation in a single measurement. It eliminates costly alignment errors, speeds up tower deployments, and generates automated, tamper-proof PDF reports required by major telecom carriers.

Key Features

• Complete 4-in-1 Measurement

  Measures Azimuth (heading), Tilt, Roll, and Height in real-time to ensure antennas are aligned precisely to network 3Z Telecom RFA-1000 designs.

• High-Precision GNSS Positioning

  Integrated dual-frequency GPS receiver delivers reliable heading accuracy even in complex urban or high-interference tower environments.

• Automated Proof-of-Alignment Reports

  Generates instant, geofenced PDF reports complete with date, time, coordinates, and photo proof to satisfy carrier compliance.

• Universal Quick-Clamp System

  Engineered to mount securely onto panel, dish, or cylindrical antennas in seconds without requiring extra tools.

• Rugged All-Weather Build

  Housed in a impact-resistant, weather-sealed enclosure built to withstand extreme temperatures and drop hazards on tower climbs.

Technical Specifications

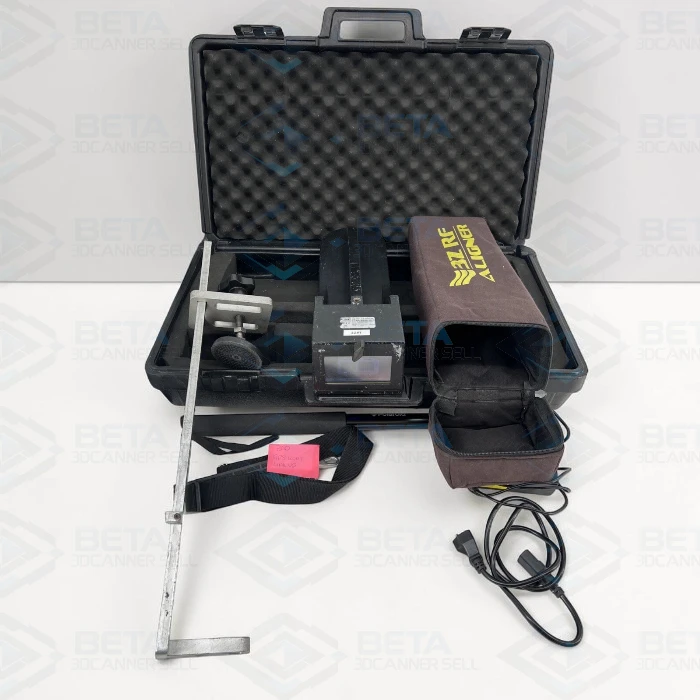

What’s in the Box

1. 3Z Telecom RFA-1000 Aligner Unit

2. Universal Antenna Mounting Clamp & Strap

3. Heavy-Duty Waterproof Carrying Case

4. AC Power Charger & Vehicle Adapter

5. Quick Start Guide & Reporting Software Access
