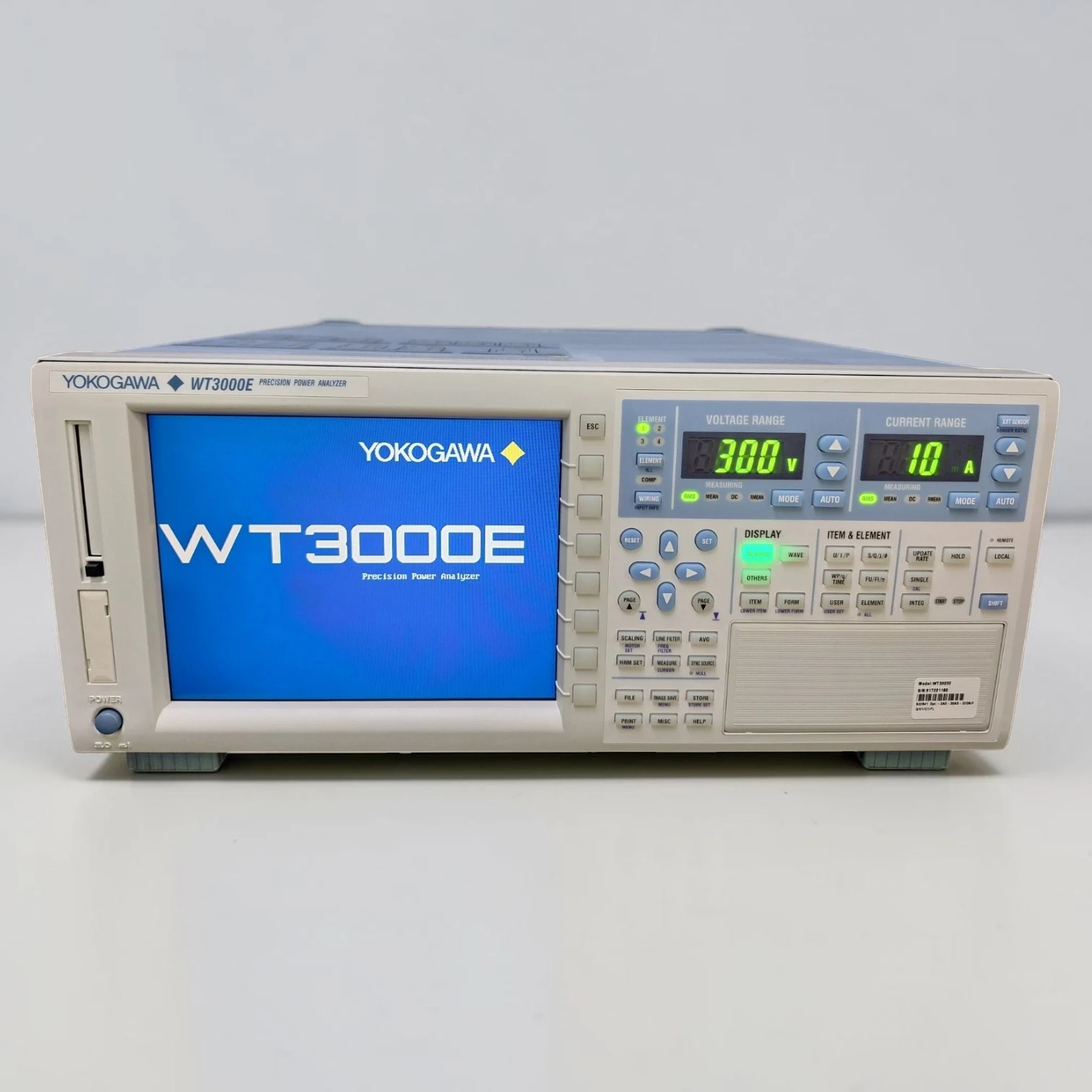

Yokogawa WT3003E Precision Power Analyzer (-2A0-30A3-D/G6/FQ/V1/C7)

The Yokogawa WT3003E is a 3-element precision power analyzer built for R&D labs, compliance testing, and efficiency validation on power electronics and multi-phase equipment. Offering a basic power accuracy of ±(0.01% of reading + 0.03% of range) and a frequency bandwidth from DC and 0.1 Hz up to 1 MHz, it provides low measurement uncertainty even in demanding high-frequency switching environments.

This specific model code (WT3003E-2A0-30A3-D/G6/FQ/V1/C7) features three 30 A direct-input power elements, factory-installed options for advanced harmonic calculations (/G6), fundamental frequency measurement (/FQ), external VGA display output (/V1), and Ethernet connectivity (/C7).

Suffix & Option Code Breakdown

To understand this exact instrument configuration:

• WT3003E: 3-Input Element Main Frame.

• -2A0: Standard 50 Hz/60 Hz calibration setting.

• -30A3: 3x Direct Current Elements rated for 30 A RMS continuous direct input.

• -D: UL/CSA standard 120 V AC power cord.

• /G6: Advanced Calculation Option (Harmonic analysis up to the 500th order, IEC compliance analysis, and raw sample data saving).

• /FQ: Fundamental Frequency Measurement Option (Adds dedicated hardware/DSP filtering for precise tracking of variable-frequency fundamentals).

• /V1: VGA Video Output Option (Allows connecting an external monitor via a standard 15-pin D-sub connector).

• /C7: Ethernet Communication Interface Option (100BASE-TX/10BASE-T for remote control and network data collection).

Technical Features & Hardware Capabilities

3x 30A Power Elements

The instrument houses three independent 30 A direct-input elements. Having three elements allows the Yokogawa  WT3003E to handle:

• 3-Phase 3-Wire (3P3W / 3V3A) and 3-Phase 4-Wire (3P4W) configurations.

• Single-phase AC input vs. 2-phase DC/AC output efficiency measurements on power converters.

• Independent per-phase current, voltage, active power, reactive power, and power factor analysis.

High Signal Integrity & Low Power Factor Error

When testing low-power-factor loads like transformers, un-loaded induction motors, or reactive components, phase-shift errors in power meters can cause large measurement inaccuracies. The WT3003E limits power factor error to 0.03% of apparent power at \cos\phi = 0, ensuring dependable readings across all load conditions.

Advanced Calculation & Harmonic Analysis (/G6)

The /G6 option enables real-time FFT processing and simultaneous harmonic analysis up to the 500th order (for 50/60 Hz fundamentals) alongside standard numeric data updates. It calculates Total Harmonic Distortion (THD), phase angles, and individual harmonic powers, making it compliant with IEC 61000-3-2 and IEC 61000-3-12 standards.

Frequency & Dynamic Range Handling

• Sampling Rate: 16-bit A/D conversion at 200 kS/s per channel.

• Crest Factor: Rated for Crest Factor 3 or 6, handling distorted, non-sinusoidal waveforms without saturation.

• Cycle-by-Cycle Analysis: Captures fluctuating transient voltage, current, and power levels cycle by cycle for dynamic load testing.

Practical Applications

• 3-Phase Inverter & VFD Efficiency: Evaluate input/output conversion losses and harmonic emissions on variable-frequency motor drives.

• Solar & Grid-Tie Converters: Measure DC input to 3-phase AC grid output efficiency and check line harmonics for grid interconnection compliance.

• Transformer Core & Loss Testing: Accurately measure no-load losses at very low power factors.

• Automated Bench Testing: Use the Ethernet port (/C7) and VGA output (/V1) to integrate the analyzer into rack-mounted ATE systems or large laboratory displays.

Technical Comparison: Yokogawa WT3003E vs. Alternative Analyzers

Engineers evaluating benchtop analyzers often compare the Yokogawa WT3003E to the Fluke Norma 5000 and Keysight PA2201A.

Comparative Insights:

1. Lower Uncertainty at Low Power Factor: The Yokogawa WT3003E maintains a lower error boundary under low power factor conditions (\cos\phi = 0) than competing models, which is crucial for transformer testing and inductors.

2. Deep Harmonic Evaluation: Standard analyzers cap harmonic measurements at the 50th or 80th order. The /G6 option on the WT3003E extends this to the 500th order, providing deeper insight into high-frequency noise from modern SiC/GaN switching devices.

3. Dedicated Option Set: Including /FQ, /G6, /V1, and /C7 directly from the factory prepares this unit for both manual bench use and fully automated computer-controlled test environments.

Specifications

• Model: WT3003E

• Suffix Configuration: -2A0-30A3-D/G6/FQ/V1/C7

• Input Elements: 3x Direct Current Elements (30 A RMS max)

• Voltage Input Ranges: 15 V, 30 V, 60 V, 100 V, 150 V, 300 V, 600 V, 1000 V RMS

• Current Input Ranges (Direct): 0.5 A, 1 A, 2 A, 5 A, 10 A, 20 A, 30 A RMS

• Basic Power Accuracy: ±(0.01% of reading + 0.03% of range) at 50/60 Hz

• Frequency Range: DC, 0.1 Hz to 1 MHz

• Sampling Rate: 200 kS/s (16-bit resolution)

• Display: 8.4-inch color TFT XGA LCD

• Connectivity Options Installed: Ethernet (/C7), VGA Output (/V1), GP-IB (Standard), RS-232, USB
