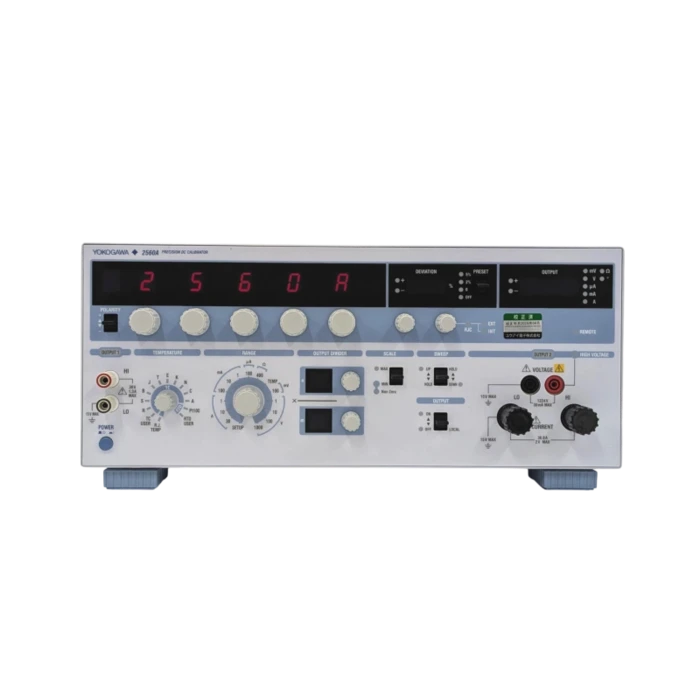

Elevate your calibration laboratory, production line, or quality assurance testing with the Yokogawa 2560A. Engineered for maximum precision and long-term stability, this versatile calibrator is designed to meet the rigorous demands of engineers and metrologists who require absolute reliability when sourcing DC voltage, current, resistance, and temperature signals.

Key Features & Capabilities

• High-Precision Output Ranges:

  • Source DC voltage from microvolts up to 1224.00 V.

  • Source DC current from 100 microamps up to 36.72 A (with parallel master-slave expansion capabilities supporting up to 73.44 A).

• Multi-Function Simulators: Built-in support for precision resistance (1 Ohm to 400 Ohms), 10 standard thermocouple types (R, S, B, J, T, E, K, N, C, A), and RTDs (such as Pt100) complete with internal reference junction compensation.

• Exceptional Accuracy & Stability: Delivers tight voltage (+/- 50 ppm) and current (+/- 70 ppm) accuracy paired with ultra-low drift, ensuring strict traceability for your working and secondary standards.

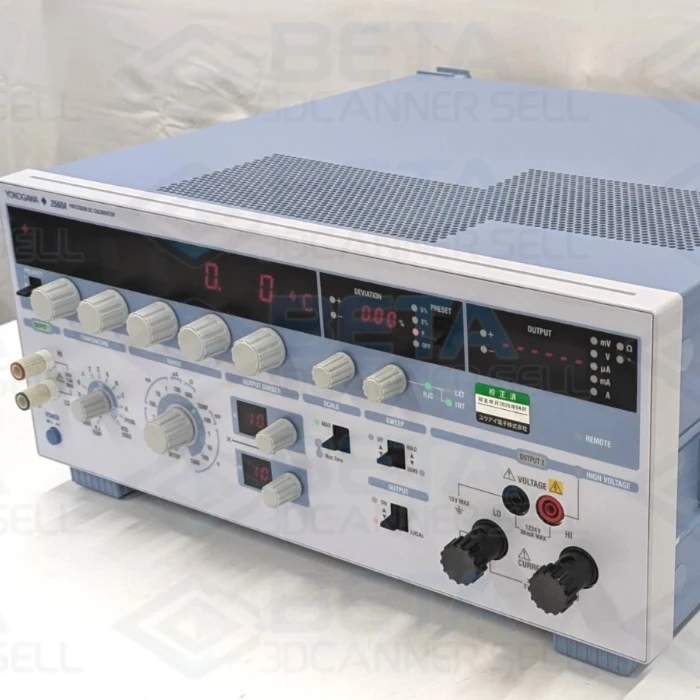

• Operator-Focused Design: Features a clear 5.5 to 6.5 digit display combined with dedicated tactile rotary switches and digit control buttons for fast, fatigue-free manual adjustments without wading through complex software menus.

• Automated Testing & Efficiency: Includes automated sweep functions, a quick-step output divider for linearity checks, and a direct deviation readout to streamline testing workflows.

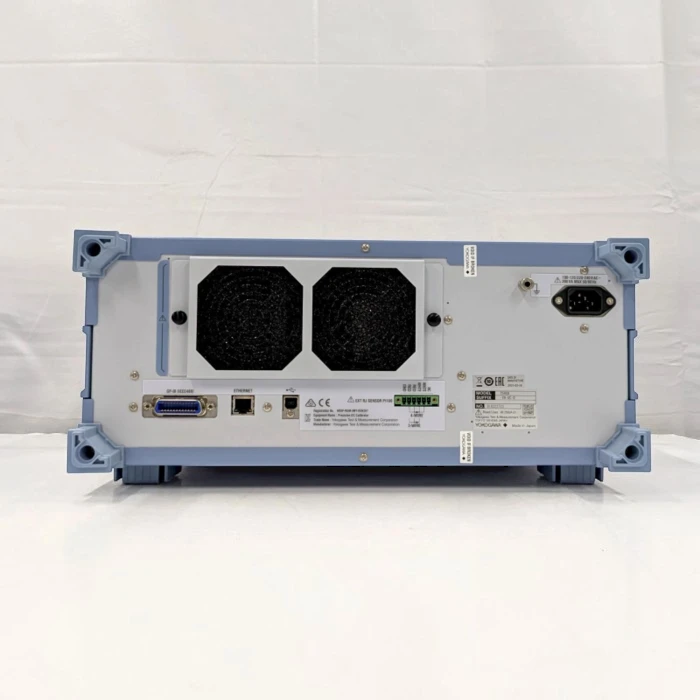

• System Integration: Equipped with standard communication interfaces (USB/GPIB) for seamless rack integration and automated test equipment (ATE) setups.

Technical Specifications

Product Comparison: Yokogawa 2560A vs. Standard Calibrators

To help you choose the ideal calibration standard for your facility’s needs, the table below compares the Yokogawa 2560A with typical mid-range DC calibrators:

Frequently Asked Questions (FAQ)

1. What instruments can be calibrated using the Yokogawa 2560A?

The Yokogawa 2560A is engineered to calibrate a wide variety of electrical and temperature measuring instruments, including handheld and benchtop digital multimeters (DMMs), analog and digital panel meters, power transducers, data loggers, and temperature transmitters.

2. How does the parallel current expansion feature work up to 73.44 A?

The instrument features a master-slave parallel connection capability. By linking two Yokogawa 2560A units together using dedicated communication cables, you can combine their output capacities. This configuration allows you to source up to 73.44 A of DC current, making it ideal for testing high-current shunts and heavy industrial power meters.

3. Does the Yokogawa 2560A support direct thermocouple simulation?

Yes, it supports 10 industry-standard thermocouple types (including R, S, B, J, T, E, K, N, C, and A) as well as user-defined curves and RTDs like Pt100. It also features built-in Reference Junction Compensation (RJC) to ensure accurate temperature measurements without requiring external compensation setups.

4. Is this calibrator suitable for automated test equipment (ATE) systems?

Yes. The Yokogawa 2560A comes equipped with standard communication interfaces such as USB and GPIB, allowing it to integrate smoothly into automated test racks and computer-controlled calibration software environments.

5. What is included with the purchase, and are calibration certificates available?

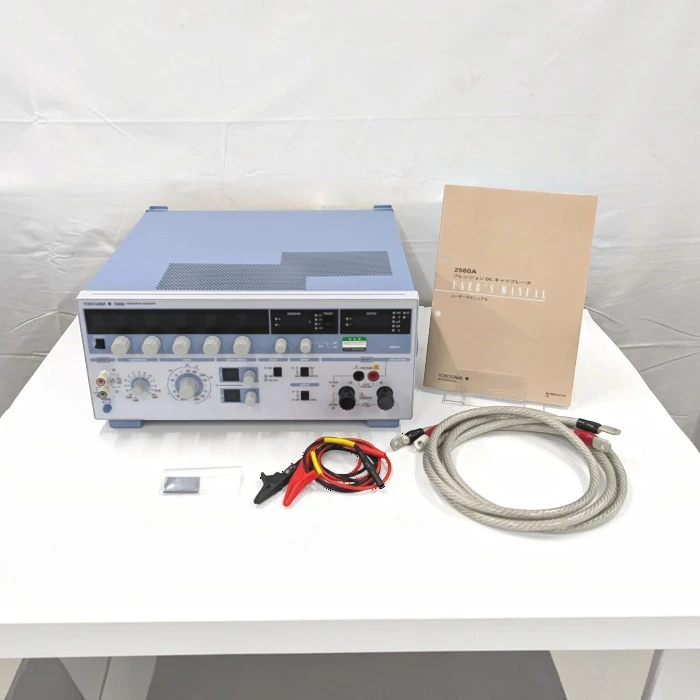

Every unit ships with standard manufacturer accessories. For details regarding factory calibration certificates or accredited ISO/IEC 17025 calibration options to meet your facility’s compliance standards, please reach out directly to our sales team.
