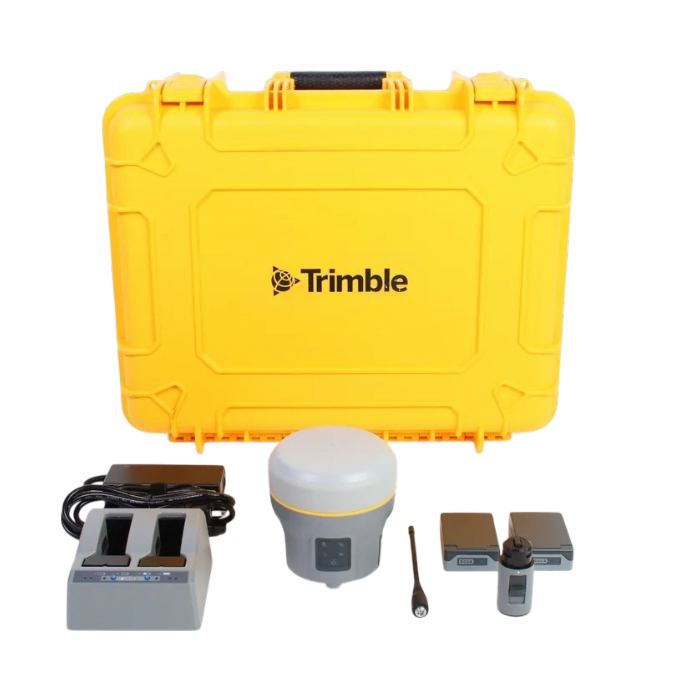

The Trimble R12i GNSS is a state-of-the-art Global Navigation Satellite System receiver built specifically for professional surveyors, mapping specialists, and construction engineers. Known for its unmatched accuracy, speed, and reliability, it excels even in the most challenging field environments.

Key Features & Advantages Trimble Dual R12i:

• Trimble ProPoint Technology: Powered by a next-gen GNSS engine designed to deliver exceptional tracking performance in difficult conditions, such as under dense tree canopies or near tall urban buildings.

• IMU-Based Tilt Compensation: Equipped with Trimble TIP technology, allowing users to measure points accurately without needing to hold the survey pole completely plumb. This drastically saves time and improves safety on the job site.

• Advanced Signal Filtering: Automatically filters out interference and multi-path signals to ensure clean, highly accurate coordinate data.

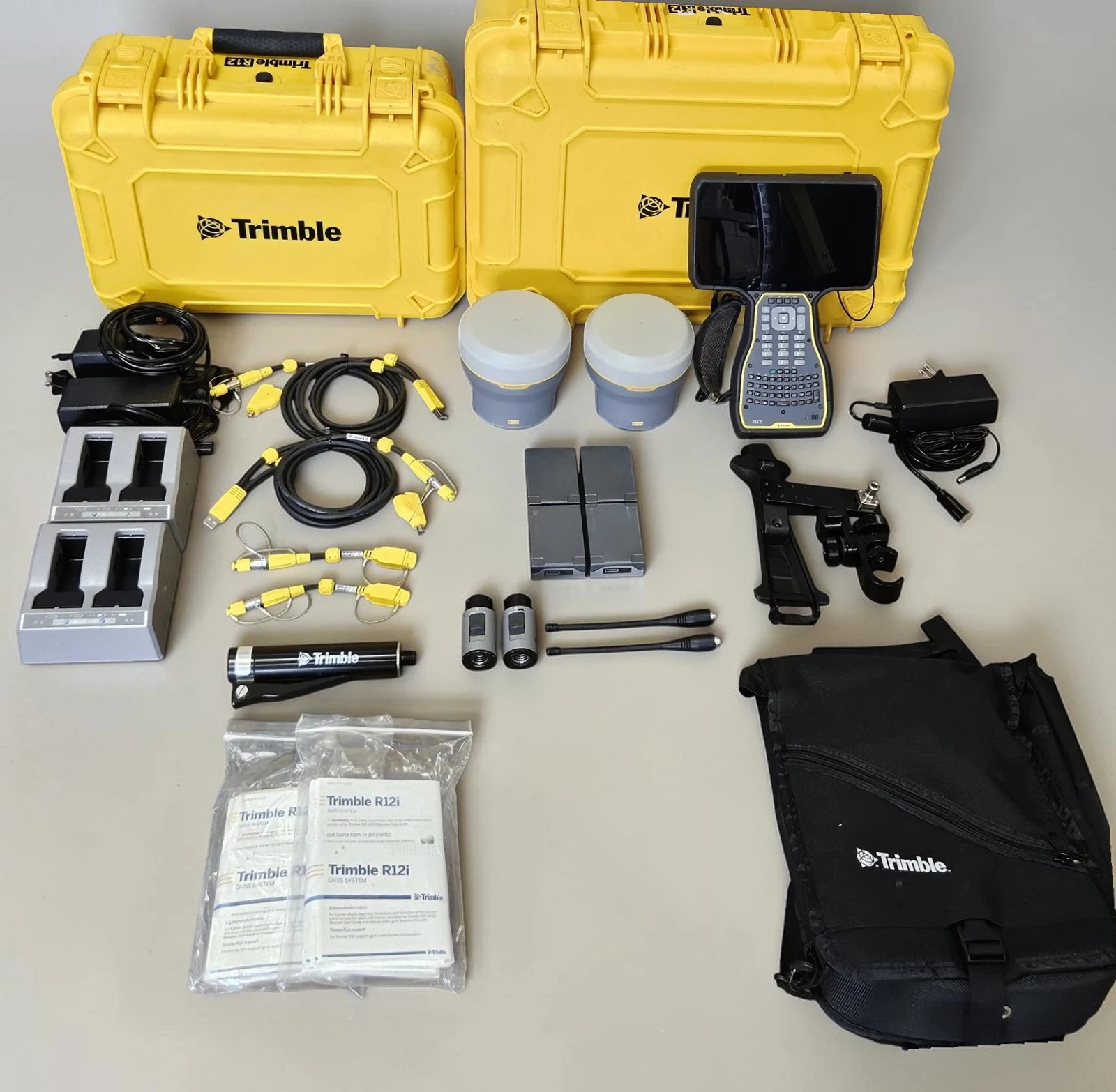

• Dual Configuration: Typically configured as a high-precision base and rover setup optimized for accurate civil construction, boundary surveying, and road mapping.

Quick Technical Specifications Trimble Dual R12i

• Constellation Support: Full multi-constellation tracking (including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS) for maximum signal availability worldwide.

• RTK Accuracy:

  • Horizontal accuracy: plus or minus 8 mm plus 0.5 ppm

  • Vertical accuracy: plus or minus 15 mm plus 0.5 ppm

• Environmental Durability: IP67-rated for dust-tight and waterproof performance, built to withstand harsh drops and extreme field conditions.

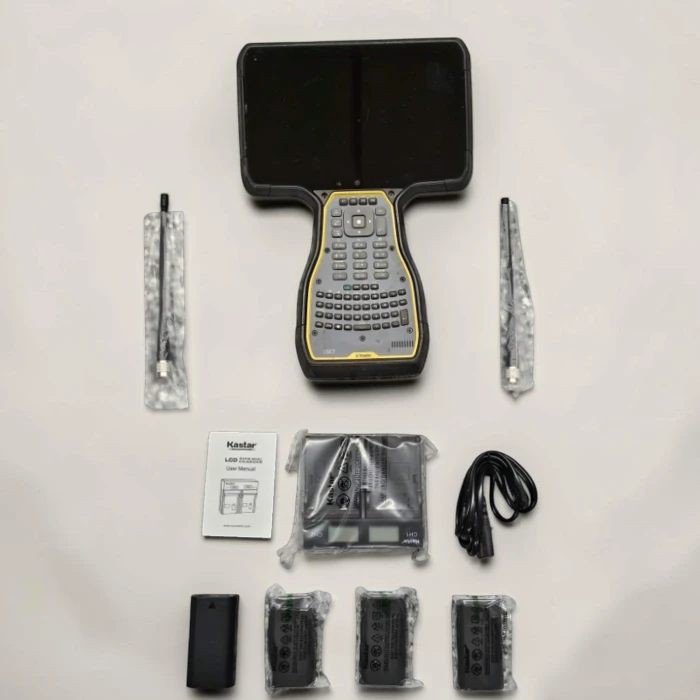

• Connectivity: Features integrated 4G LTE modem, Wi-Fi, and Bluetooth for seamless RTK correction data and easy pairing with data collectors like the Trimble TSC7.

Primary Applications Trimble Dual R12i:

• Cadastral surveying and land boundary mapping

• Civil construction, infrastructure layout, and grading

• GIS asset data collection and utility mapping
