Fluke Biomedical ESA615 Electrical Safety Analyzer

The Fluke Biomedical ESA615 is engineered for healthcare technology management professionals who need reliable, standardized testing of medical devices. In one portable unit, it covers the primary electrical safety tests required by current regulations and hospital policies, while also providing ECG simulation capabilities for patient monitoring verification.

The ESA615 allows the user to select test protocols based on ANSI/AAMI ES-1, IEC60601-1 (2nd and 3rd edition), IEC62353 and other regional standards. Once the desired standard is selected, the analyzer automatically applies the correct patient load, test limits and measurement configurations. This reduces setup time and helps ensure that each device is tested consistently against the applicable requirements.

In addition to core electrical safety checks such as line voltage, earth continuity and leakage currents, the Fluke Biomedical ESA615 includes ECG waveform simulation and dual‑lead measurements. This lets engineers confirm that patient monitors and similar devices correctly detect and display ECG signals, without the need for a separate ECG simulator. For service and calibration labs, this integration simplifies test setups and reduces the number of instruments on the bench.

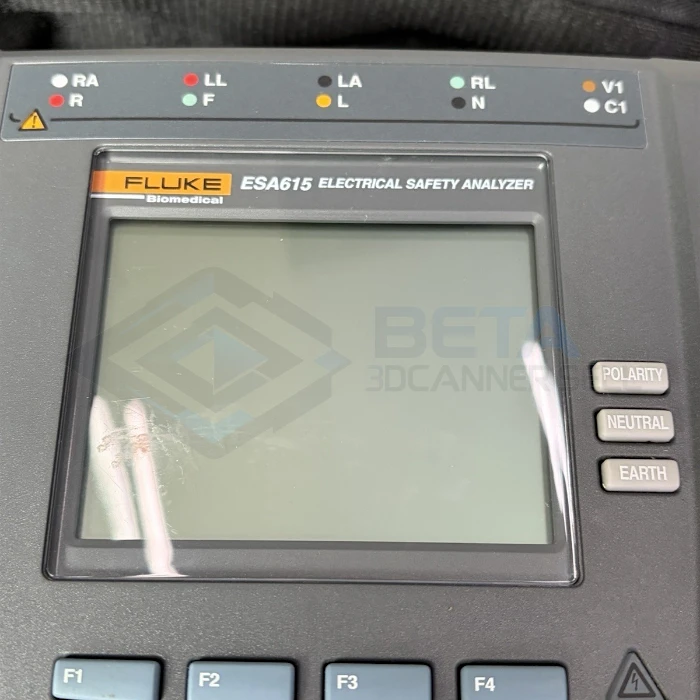

The interface is designed for practical field and lab use. A large display provides clear feedback on test status and measured values, while the front panel controls, keyboard input and optional barcode scanner make it easy to enter device information and manage test records. This is particularly useful in environments with large equipment inventories and audit requirements.

Applications

The Fluke Biomedical ESA615 is suited for a wide range of medical electrical safety testing tasks, including:

• Periodic preventive maintenance and safety verification of medical equipment in hospitals and clinics.

• Incoming inspection and acceptance testing of new devices before they are put into service.

• Bench testing in biomedical service and calibration laboratories.

• Field service and on-site testing for OEMs and third‑party service providers handling diverse device portfolios.

By providing automated sequences aligned with international standards, the analyzer helps standardize test procedures across different sites and teams, supporting consistent documentation and compliance.

Technical overview

The Fluke Biomedical ESA615 combines several measurement functions into one platform:

• Line (mains) voltage measurement in typical ranges from 90 V to 132 V ac rms and 180 V to 264 V ac rms, with available point‑to‑point voltage up to 300 V ac rms.

• Protective earth (ground) resistance measurement to validate earth continuity between the device under test and the mains earth.

• Insulation resistance measurement to assess insulation between live parts and accessible conductive surfaces.

• Leakage current measurement for equipment, enclosure, patient, auxiliary and mains‑on‑applied‑parts leakage under defined test conditions.medwrench

• Point‑to‑point voltage, resistance and leakage for targeted evaluation of specific circuits and applied parts.

On the ECG side, the ESA615 can generate standard ECG waveforms to verify that patient monitors respond correctly, supporting both performance testing and troubleshooting of monitoring systems.

Compliance and safety

The ESA615 is designed to support testing to:

• ANSI/AAMI ES-1 and NFPA 99

• IEC60601-1 (2nd and 3rd Edition)

• IEC62353

• VDE751

• AS/NZS 3551

This makes the instrument suitable for facilities that manage multi‑regional device fleets and must comply with different regulatory frameworks.flukebiomedical

The analyzer itself is built to relevant measurement and safety standards, including IEC 61010-2-030, CAT II up to 300 V, and IEC 60529 IP20 for indoor use.

Physical and operating characteristics

• Instrument type: Electrical safety analyzer with integrated ECG simulator.

• Approximate dimensions: about 28.5 cm (H) × 17.6 cm (W) × 8.4 cm (D), suitable for bench or cart mounting.

• Approximate weight: around 1.6 kg, optimized for portable use.

• Typical operating temperature: 10 °C to 40 °C; storage approximately −20 °C to 60 °C.

Call to action for Fluke esa615 price

For detailed technical specifications, accessories and available test leads, or to request a quotation for the fluke esa615 price Electrical Safety Analyzer, please contact our sales team or submit an inquiry through the form on this page.
