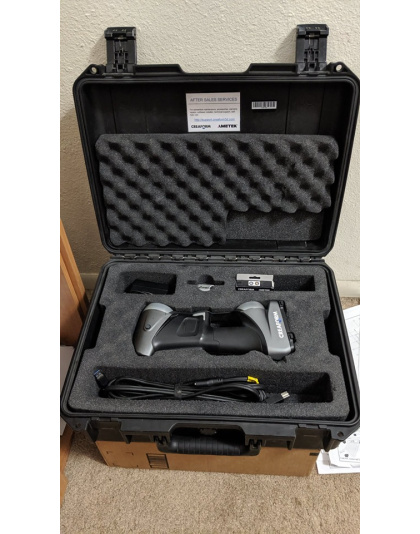

USED CREAFORM HANDYSCAN BLACK ELITE 3D LASER SCANNER FOR SALE!!

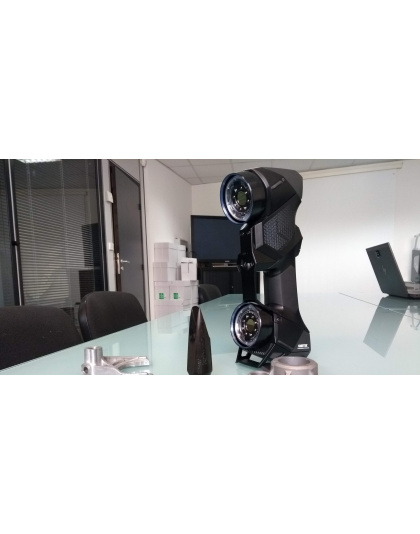

The HandySCAN BLACK is made for professionals who need the most effective and reliable tool on the market to capture accurate dimensional measurements of physical objects. HandySCAN BLACK combines high-performance 3D scanning with improved optics, multiple blue laser technology and a sleek, ergonomic design.
$10,500.00
Qty:
Add to Cart Buy Now
Print

The HandySCAN BLACK is made for professionals who need the most effective and reliable tool on the market to capture accurate dimensional measurements of physical objects. HandySCAN BLACK combines high-performance 3D scanning with improved optics, multiple blue laser technology and a sleek, ergonomic design.

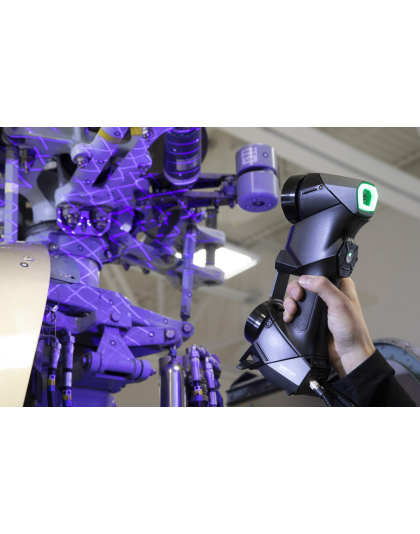

This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.

Creaform HandySCAN BLACK Elite is the latest generation of HandySCAN 3D features improved optics, multiple blue laser technology and powerful algorithms for faster, more accurate instant measurements. The highest version of the portable metrology-grade 3D scanner, better accuracy 0.025 mm (0.0009 in), Measurement Rate 1,300,000 per second, 11 blue laser crosses ( 1 extra line). sets the standard for measurement, regardless of size, material or complexity, within second. The standard version is Creaform HandySCAN BLACK with accuracy of 0.035 mm (0.0014 in) and a scanning speed of 800,000 measurements per second can be achieved. The HandySCAN BLACK, the third-generation version of Creaform’s patented metrology-grade scanner, latest generation of the HandySCAN 3D features improved optics, multiple blue laser technology and powerful algorithms for faster, more accurate instant measurements.

New Features:

  • Accuracy of 0.025 mm
  • ISO 17025
  • 11 blue laser crosses
  • Large scanning area
  • Scan-to-mesh in seconds
  • Worldwide support
  • Patented technology
  • VDI/VDE 2634 - Metrology Certification



When accuracy meets versatility and portability
The HandySCAN 3D line-up is the reference in portable metrology?grade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere. This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.

The standard version is Creaform HandySCAN BLACK with accuracy of 0.035 mm (0.0014 in) and a scanning speed of 800,000 measurements per second can be achieved. The HandySCAN BLACK, the third-generation version of Creaform’s patented metrology-grade scanner, latest generation of the HandySCAN 3D features improved optics, multiple blue laser technology and powerful algorithms for faster, more accurate instant measurements.

High-Performance Tools to Meet Rising Quality Standards

  • 4X resolution: Captures fine details and large volumes thanks to the unique and versatile combination of improved high-performance optics and multiple blue laser technology.
  • 3X faster measurement speed and instant mesh: Larger scanning area featuring 11 blue laser crosses that take up to 1,300,000 measurements per second, ultimately cutting down the time between acquisition and workable files.
  • More accurate and traceable measurements: Volumetric accuracy of 0.020 mm 0.040 mm/m (0.0008 in. 0.0005 in./ft) based on VDI/VDE 2634 part 3 as well as ISO 17025, ensuring reliability and full traceability to international standards.
  • Available in BLACK and BLACK|Elite: Customers can choose from two models based on their needs: part complexity, measurement speed, accuracy, etc

Specifications:

HandySCAN 307HandySCAN BLACKHandySCAN BLACK Elite
AccuracyUp to 0.040 mm
(0.0016 in)		0.035 mm
(0.0014 in)		0.025 mm
(0.0009 in)
Volumetric accuracy(2)
(based on part size)		0.020 mm 0.100 mm/m
(0.0008 in 0.0012 in/ft)		0.020 mm 0.060 mm/m
(0.0008 in 0.0007 in/ft)		0.020 mm 0.040 mm/m
(0.0008 in 0.0005 in/ft)
Volumetric accuracy with
MaxSHOT Next™ | Elite(3)		0.020 mm 0.015 mm/m
(0.0008 in 0.00018 in/ft)
Measurement resolution0.100 mm
(0.0039 in)		0.025 mm
(0.0009 in)
Mesh resolution0.200 mm
(0.0078 in)		0.100 mm
(0.0039 in)
Measurement rate480,000 measurements/s800,000 measurements/s1,300,000 measurements/s
Light source7 red laser crosses7 blue laser crosses11 blue laser crosses
( 1 extra line)
Laser class2M
(eye-safe)
Scanning area275 x 250 mm
(10.8 x 9.8 in)		310 x 350 mm
(12.2 x 13.8 in)
Stand-off distance300 mm
(11.8 in)
Depth of field250 mm
(9.8 in)
Part size range (recommended)0.1–4 m
(0.3–13 ft)		0.05–4 m
(0.15–13 ft)
SoftwareVXelements
Output formats.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software *- 3D Systems (Geomagic® Solutions)
- InnovMetric Software (PolyWorks)
- Dassault (CATIA V5 and SOLIDWORKS)
- PTC (Creo)
- Siemens (NX and Solid Edge)
- Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage)
Weight0.85 kg
(1.9 lb)		0.94 kg
(2.1 lb)
Dimensions
(LxWxH)		122 x 77 x 294 mm
(4.8 x 3.0 x 11.6 in)
Connection standard1 X USB 3.0
Operating temperature range5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)		10-90%
CertificationsEC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
PatentsCA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X
  • Availability: In Stock
  • Model: CREAFORM HANDYSCAN BLACK ELITE 3D LASER SCANNER
  • Brand: Creaform
