Pruftechnik Rotalign Ultra Laser Shaft Alignment System

Have you ever wondered how big machines work together without breaking down? One of the secrets to their success is something called shaft alignment. The Pruftechnik Rotalign Ultra Laser Shaft Alignment System is a special tool that helps make sure the parts of these machines are lined up perfectly. In this guide, we’ll explore what this system is, how it works, and why it’s so important for keeping machines running smoothly.

What is Shaft Alignment?

First, let’s talk about what shaft alignment means. Imagine you have two spinning parts in a machine, like a motor and a pump. If these parts are not lined up correctly, they can cause all sorts of problems, like making noise, wasting energy, or even breaking down completely. Shaft alignment is the process of making sure these parts are perfectly aligned so they can work together without any issues.

Why is Shaft Alignment Important?

Proper shaft alignment is super important for several reasons:

1. Reduces Wear and Tear: When parts are misaligned, they can rub against each other, causing damage over time. This can lead to expensive repairs. Correct alignment helps prevent this.

2. Saves Money: By reducing wear, machines last longer and need fewer repairs. This means companies can save a lot of money in the long run.

3. Improves Efficiency: Well-aligned machines run more efficiently, using less energy and producing better results. This can help companies save on energy costs.

4. Decreases Downtime: When machines break down, it can lead to lost production time. Proper alignment helps avoid these costly downtimes, keeping everything running smoothly.

Introducing the Pruftechnik Rotalign Ultra

Now that we understand why shaft alignment is so important, let’s dive into the Pruftechnik Rotalign Ultra Laser Shaft Alignment System. This system is like having a high-tech assistant that helps engineers and technicians align machinery accurately and easily.

Key Features of the Rotalign Ultra

1. Laser Technology

The heart of the Rotalign Ultra is its advanced laser technology. Unlike traditional methods that might use rulers or other tools, this system uses lasers to measure the alignment. Lasers are super precise, which means they can give very accurate readings. When the laser shines on the machine parts, it helps determine if they are lined up correctly or not.

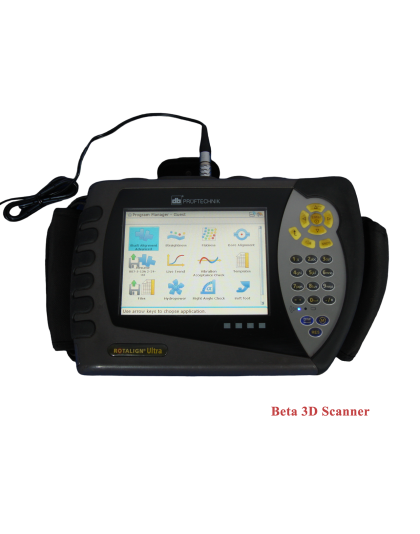

2. User-Friendly Interface

One of the best things about the Rotalign Ultra is how easy it is to use. The system comes with a friendly interface that guides users through the alignment process. Even someone who is new to this kind of work can learn how to use it quickly. The menus and buttons are designed to be simple, making it accessible for everyone.

3. Wireless Connectivity

In today’s world, being connected is essential. The Rotalign Ultra has Bluetooth technology, allowing it to communicate wirelessly with other devices. This means that users can see the alignment data on their tablets or smartphones without being right next to the machine. This feature makes it easier to work in tight spaces or noisy environments.

4. Robust and Durable Design

The Rotalign Ultra is built to last. It’s designed to withstand tough conditions, such as heat, dust, and vibrations. This durability means that it can be used in various industries, from factories to power plants, without worrying about it breaking down.

5. Real-Time Feedback and Analysis

One of the coolest features of the Rotalign Ultra is that it provides real-time feedback. As users adjust the alignment, they can see the results immediately on the screen. This instant feedback helps them make quick decisions and adjustments, ensuring that the alignment is perfect.

6. Data Storage Capabilities

The system can store measurement data for later use. This feature is beneficial for maintenance planning. Engineers can look back at past alignments to see if there are any patterns or recurring issues. This information is valuable for preventing future problems.

How Does the Rotalign Ultra Work?

Let’s break down how the Pruftechnik Rotalign Ultra works in simple terms.

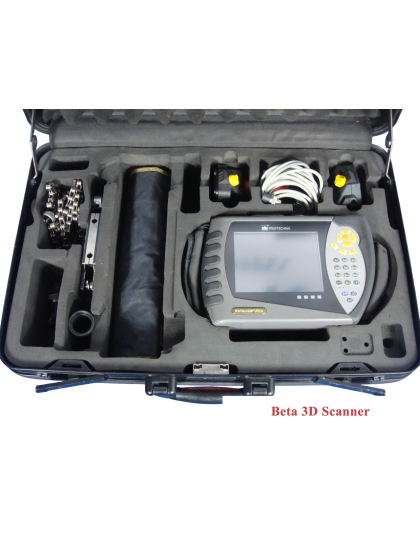

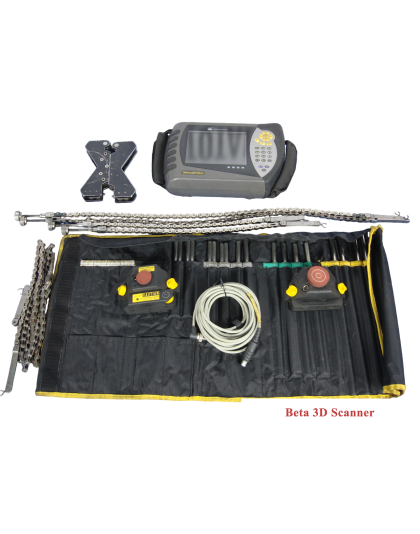

1. Setup: First, technicians set up the system by placing the laser units on the shafts of the machines they want to align.

2. Measurement: The system then sends a laser beam to measure the alignment. It checks the positions of the two shafts and calculates whether they are aligned.

3. Display Results: The results are displayed on a screen, showing whether the shafts are aligned or if adjustments are needed.

4. Adjustments: If the shafts are not aligned, technicians can make adjustments based on the feedback from the system. They can see exactly how much to move each part to achieve perfect alignment.

5. Final Check: After making adjustments, the technicians can take another measurement to ensure everything is now aligned correctly.

Applications of the Rotalign Ultra

The Pruftechnik Rotalign Ultra is used in many different industries. Here are some examples:

1. Manufacturing

In factories, machines work together to create products. If one machine is not aligned correctly, it can slow down production or cause defects. The Rotalign Ultra helps ensure that all machines are aligned, keeping production running smoothly.

2. Power Generation

In power plants, turbines and generators must be perfectly aligned to produce electricity efficiently. The Rotalign Ultra is essential for maintaining the alignment of these critical components.

3. Oil and Gas

In the oil and gas industry, machinery operates in challenging environments. The durability and accuracy of the Rotalign Ultra make it ideal for ensuring that equipment remains aligned in these tough conditions.

4. Mining

Heavy machinery used in mining operations must be aligned correctly to function efficiently. The Rotalign Ultra helps miners keep their equipment in top condition.

Benefits of Using the Rotalign Ultra

Using the Pruftechnik Rotalign Ultra offers several benefits:

• Time-Saving: The system speeds up the alignment process, allowing technicians to complete tasks more quickly.
• Cost-Effective: By preventing wear and tear, the system helps save money on repairs and replacements.
• Enhanced Safety: Properly aligned machines are less likely to malfunction, reducing the risk of accidents in the workplace.
• Better Performance: Machines that are aligned run more efficiently, leading to improved productivity.

Conclusion

The Pruftechnik Rotalign Ultra Laser Shaft Alignment System is a revolutionary tool that makes the process of aligning machinery easier, faster, and more accurate. With its advanced laser technology, user-friendly design, and real-time feedback, it is an essential asset for industries that rely on rotating machinery. By ensuring proper alignment, this system helps save money, reduce downtime, and improve overall efficiency.

Whether you’re a technician in a factory or an engineer in a power plant, the Rotalign Ultra is here to help you keep your machines running smoothly. It’s a fantastic example of how technology can make our work easier and our machines better. So next time you see a machine spinning, remember the importance of alignment and the amazing tools like the Rotalign Ultra that help make it all possible!

By understanding and using the Pruftechnik Rotalign Ultra, we can ensure that machines operate at their best, making our world more efficient and productive.
