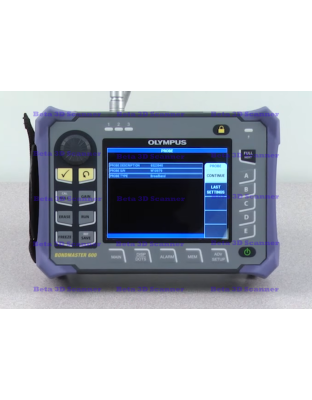

The BondMaster 600 delivers a powerful combination of multiple mode bond testing software and highly advanced digital electronics, providing consistently crisp and high-quality signals. Whether you are inspecting honeycomb composite, metal-to-metal bonds, or laminate composite, the BondMaster 600 offers exceptional ease-of-use thanks to its direct-access keys and streamlined interface that features convenient presets for common applications. The enhanced user interface and simplified workflow of the BondMaster 600 offers archiving and reporting that are accessible to any level of user.
The resolution and brightness of the 5.7-inch VGA screen on the BondMaster 600 handheld bond tester becomes even more apparent when switched into full-screen mode. Activated by the simple touch of a key, the full-screen mode is always accessible regardless of the display mode or inspection method you are using. The BondMaster 600 bond tester is programmed for a range of standard inspection methods, including pitch-catch RF, pitch-catch impulse, pitch-catch swept, resonance, as well as a notably improved mechanical impedance analysis (MIA) method.
Key Features
- Designed to meet the requirements of IP66.
- Long battery life (up to 9 hours).
- Compatible with existing BondMaster probes (PowerLink) and probes from other manufacturers.
- Bright, 5.7-inch color VGA display.
- Full-screen option in any display mode.
- Intuitive interface with application-specific presets.
- Instant display mode toggle using the RUN key.
- New SCAN view (profile).
- New SPECTRUM view and Frequency Tracking feature.
- Direct-access key gain adjustment.
- All-Settings configuration page screen.
- Up to two real-time readings.
- Storage capacity of up to 500 files (program and data).
- On-board file preview
The BondMaster 600 is offered in two models to accommodate the varying needs of composite bond testing. The basic model includes all pitch-catch capabilities, while the B600M model features all bond testing inspection methods. The upgrade from basic to multimode can also be performed remotely.
Both BondMaster 600 models are compatible with existing Olympus BondMaster probes, including those equipped with the PowerLink technology. Optional adaptor cables are available to enable compatibility with probes from other manufacturers.
The Nortec 500 improves on previous Nortec eddy current instruments and is available in four configurations. Each configuration includes a USB port and increased resolution with reduced noise. Internal balance coils allow use of inexpensive absolute probes without the need or external balance coil adapters. A builtin preamp adds extra gain when needed for difficult tests. VGA output allows for the display to be projected or viewed on a standard computer screen. The optional remote-null adapter adds convenience by allowing the probe to be nulled and the instrument screen erased from the probe.
Where weight is critical, the smaller battery lightens the instrument to 1.2 kg (2.8 lbs) while keeping the full VGA resolution and display size.
Olympus Nortec 500 Features:
Olympus Nortec 500 Features:
- 50 Hz to 12 MHz frequency range
- Preamplifier (0 or 14 dB)
- Single Li-Ion battery, choice of two battery configurations: 2.4 Ahr or 8.8 Ahr
- Lightweight, 1.2 kg to 1.7 kg (2.8 lbs to 3.8 lbs) depending on battery configuration
- 165 mm (6.5 in.) full VGA color LCD (640 x 480 resolution)
- On-board storage of up to 200 programs
- On-screen reference memory for go/no go applications
- Internal balance loads for single coil probe support
- Display Freeze to hold flaw signals
- Power Link technology – automatic probe recognition and instrument set-up
- Foreign Object Debris (FOD) free case design
- VGA output
Configurations of the Olympus Nortec 500:
- The Olympus Nortec 500 delivers basic single frequency eddy current inspection including external outputs.
- The Olympus Nortec 500C adds digital conductivity and coating thickness measurement capability in addition to basic single frequency eddy current inspection.
- The Olympus Nortec 500S builds on the foundation of the N500C and adds the ability to use rotating scanners.
- The Olympus Nortec 500D adds dual frequency capabilities to all the functions of the N500S.
The large, full VGA transflective display combined with our patent-pending digital high dynamic receiver provides a stable, striking A-scan representation in any lighting condition. Available in two hardware configurations, the EPOCH 600 offers you the choice to adjust parameters with a knob or with a navigation area on the keypad. The EPOCH 600 is designed to meet the requirements of EN12668-1 and allows a full range of standard and optional flaw detection features. The rugged, ergonomic design allows use in nearly any environment, while the flexible PerfectSquare pulser and digital filtering capabilities can tackle nearly any application. The EPOCH 600 combines the efficiency of a basic flaw detector with the quality of Olympus’ most powerful fully digital ultrasonic instruments. A full range of dynamic, reliable inspection features are packaged with economy of size and ease of use. This optimal balance brings powerful flaw detection features within reach ofany level of inspector.
Key Features:
- Designed to meet the requirements of EN12668-1
- PerfectSquare tunable square wave pulser
- Digital high dynamic range receiver
- Eight digital filters for enhanced signal-to-noise ratio
- 2 kHz PRF for rapid scanning
- Knob or navigation pad adjustment configurations
- Large, full VGA sunlight readable display
- Long battery life, supporting lithium-ion or alkaline batteries
- Standard dynamic DAC/TVG and onboard DGS/AVG
- 2 GB MicroSD memory card for data transfers and storage
- USB On-The-Go (OTG) for PC communication
- Alarm and VGA outputs
- Optional analog output
Appications:
Ultrasonic flaw detection is widely used in locating and sizing hidden cracks, voids, disbonds, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components
L Series
Get the ruggedness, ease of use, and data management features of Vanta analyzers in a cost-effective PIN instrument. The L Series is designed for maximum uptime and a lower cost of ownership for reliability in the field.
Vanta Specifications
| Dimensions (W × H × D) | 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) |
| Weight | L series: 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery |
| Excitation Source | (W) and Element (W): 35 kV (2 watts) |
| Primary Beam Filtration | L series and Element: Fixed aluminum filter and no internal collimation |
| Detector | L series and Element: Silicon PIN detector |
| Power | Removable 14.4 V Li-ion battery with hot-swap capability (M, C, and L series only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| Operating evnerionment | Temperature range for the M, C, and L series: −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity non-condensing |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP rating and Detector Shutter | IP55: dust protected and protected against water jets from all directions |
| GPS | Embedded GPS / GLONASS receiver |
| Operating System | Linux Cloud enabled with user fleet manager capability |
| Data Stoarge | microSD slot with removable 1 GB industrial SD card included |
| USB | (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer. |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor |
| Bluetooth | Supports Bluetooth with an optional USB adaptor |
| Aiming Camera | Full VGA CMOS camera (Optional on M, C, and L series) |
| Panoramic Camera | 5-megapixel CMOS camera with autofocus lens (Optional on M, C, and L series) |
The Olympus Vanta iX in-line X-ray fluorescence (XRF) analyzer gives you confidence in your products by automating material analysis and alloy identification on the manufacturing line:
- Delivers instant results for real-time process monitoring and 100% inspection
- Built to operate 24/7
- Configured to deliver pass/fail results, accurate grade ID, and material chemistry
100% Inspection for Metal Fabrication of Tubes, Bars, and Rods
For organizations adopting Industry 4.0 practices and 24/7 process control to verify alloys with pass/fail analysis, the Vanta iX analyzer delivers material verification and lot/heat control for bar, billet, tube, and rod manufacturing, as well as machined parts and customized components. Automating your testing with a Vanta iX analyzer adds a competitive edge to your finished product since you can demonstrate that materials are 100% tested and verified.
Scanning and Monitoring for Ore Grade Control in Mining
For geological processing and mining, the Vanta iX analyzer enables core scanning and on-belt analysis with real-time results to monitor process variability and ensure ore grade consistency. During on-belt analysis, the analyzer provides blending verification and process validation of concentrates.
Easily Integrates into a Variety of Production Systems
The Vanta iX analyzer is versatile, compact, and easy to install—use the mounting holes on each side to mount the analyzer onto robotics and other systems. There is no external control box, so you can easily control the analyzer with either the Vanta Connect API or a PLC and discrete wire.
Connector options:
- Ethernet (RJ-45), enabling Power over Ethernet
- USB
- Discrete I/O (16 pins
- AUX DC power
Rugged for Greater Uptime in Manufacturing Environments
The Vanta iX analyzer is built to endure the high levels of vibration, electromagnetic and acoustical noise, dust, and moisture of production facilities for increased reliability and uptime.
- Vibration tested (MIL-STD)
- IP54 rated
- Designed to operate from –10 °C to 50 °C (14 °F to 122 °F) with continuous testing
A built-in heat sink lowers the internal temperature, while fan attachment points are available if additional cooling is needed. The analyzer offers toolless window changes for fast maintenance.
Vanta iX Specifications
| Dimensions (W × H × D) | 10 cm × 7.9 cm × 26.6 cm (3.9 in. × 3.1 in. × 10.5 in.) |
| Weight | 2.4 kg (5.29 lb) |
| Excitation Source | X-ray tube: Rh or W anode (application optimized) 5–200 μA MR model: 8–50 keV (4 W max) CW model: 8–40 keV (4 W max) |
| Primary Beam Filtration | Eight filter positions automatically selected per beam per method |
| Detector | MR model: Large-area silicon drift detector CW model: Standard silicon drift detector |
| Power | Power over Ethernet (PoE) or 18 V AC power adaptor |
| Elemental Range | Method dependent: MR model: Mg–U CW model: Ti–U (with standard window and calibration) |
| Pressure Correction | Built-in barometer for automatic altitude and air pressure correction |
| IP Rating | IP54 |
| Operating Environment | Temperature range: –10 °C to 50 °C (14 °F to 122 °F) under continuous duty cycle Humidity: 10% to 90% relative humidity, non-condensing |
| Operating System | Linux |
| Application Software | Olympus proprietary data acquisition and processing package |

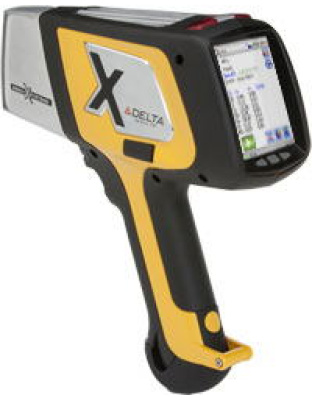

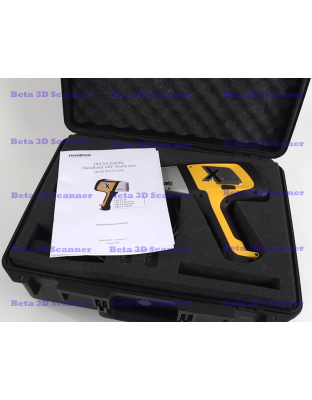

The Delta is a handheld energy dispersive X-Ray fluorescence spectrometer, generally referred to as an XRF analyzer.
Optimized DELTA Configuration
New X-act Count Technology
Silicon Drift Detector
Automatic Filtering
Application Specific Tubes
Enhanced Analytical Performance
Light Elements and Alloys
Mg, Al, Si, and S Sensitivity
Transition and Heavy Metals
Rare Earth Elements (REEs)
Value Solution
Fast Measurement Time
Broad Elemental Range
Low Limits of Detection
Outstanding Precision
Hot Swap Battery for Continuous Operation
Features & Benefits of the DELTA Line:
- Non-destructive testing - tests through packaging
- High throughput - get pass/fail results within seconds
- Plastic or metal - the DELTA automatically optimizes for the best results based on the material at hand
- Screen for lead and up to 25 other substances
Come With:
- Hard Padded Transport Case
- Olympus Innov X DS-6000
- Docking/Calibration Stand
- 2 Lithium Ion Batteries
- Charger and AC Cable
- Wrist Strap
- Prolene Windows
- USB Sync Cable

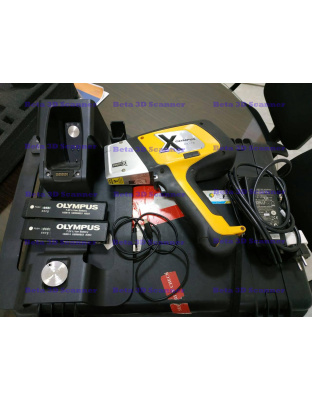

Come With:
- Hard Padded Transport Case
- Olympus Innov X DS-6000
- Docking/Calibration Stand
- 2 Lithium Ion Batteries
- Charger and AC Cable
- Wrist Strap
- Prolene Windows
- USB Sync Cable
Olympus Staveley Nortec 2000D Features :
- PS-5 AL Scanner
- Speed Range: Variable, 40 to 240 rpm
- Speed Control: Instrument controlled
- Frequency Range: 100 kHz – 12 MHz
- Probe Connector: Staveley Tri-axial ( accommodates Gulton style probes)
- Probe Types: Absolute and differential in both Bridge and Reflection configurations. Will also accept single coil probes
- Signal Coupling: Axial rotary slip rings
- Translation Range: Variable to 1.5 in. ( 38 mm) and reversible. Probe retraction limit is variable to
- compensate for different probe lengths.
- Mounting: Hand-held or special fixture
- Orientation: No physical restrictions
- Cable Connector: 16-pin LEMO
- Size: 5.0 ” L x 1.9 ” W x 2.5 ” H ( 127 mm x 48 mm x 64 mm)
- Weight: 2 lbs 6 oz ( 1.1 kg)
Includes :
- Nortec Staveley 2000D Eddy Current Unit W/ Brite Display
- PS-5 AL Scanner
- 16 pin NEMO scanner connector cable
- Probe RS-232 Adapter
- Cable Serial Interface Adapter
- 2 Batteries
- Battery Charger/ Eliminator
- External DR-35 Battery Holder Battery Sled
- Belt Pack & Chest Harness
- Protective cover for Nortec Staveley 2000D
- 60 Khz Conductivity Probe
- Conductively Standard
- Manual on CD
- Eddy Master PC Software
- VHS Video
- Power Cord
- Hard Shipping Case
Reliable Flaw Detection in the Palm of your Hand
Portable and easy to use, the EPOCH 6LT flaw detector is an ergonomic, rugged instrument that delivers user comfort and more uptime.
- Weighs just 1.95 pounds (890 g) with a grip-oriented weight distribution for one-handed operation with minimal wrist fatigue
- Rotary knob and simple button design make it easy to use, even when wearing gloves
- Engineered to IP65/67 and drop tested
- Clear, bright screen for readable A-scans in any light
More Functionality on the Go
The EPOCH 6LT flaw detector’s workflow is simple and straightforward. Despite the instrument’s small size, it has the features and functions to meet the requirements of nearly any conventional ultrasonic inspection application.
- Offers all the core functionality of the EPOCH 650 flaw detector in a small, portable instrument
- Meets the requirements of ISO 22232-1
- Optional corrosion software with center-pin transducer ID
- Optional Wireless LAN connectivity
Designed for Rope Access and Ultra-High Portability Applications
The EPOCH 6LT flaw detector’s workflow is simple and straightforward. Despite the instrument’s small size, it has the features and functions to meet the requirements of nearly any conventional ultrasonic inspection application.
- Offers all the core functionality of the EPOCH 650 flaw detector in a small, portable instrument
- Meets the requirements of ISO 22232-1
- Optional corrosion software with center-pin transducer ID
- Optional Wireless LAN connectivity
General Epoch 6LT
| USER INTERFACE LANGUAGES | English, Spanish, French, German, Japanese, Chinese, Portuguese, Russian, Italian |
|---|---|
| TRANSDUCER CONNECTIONS | LEMO 00 |
| DATA STORAGE | 100,000 IDs onboard |
| BATTERY TYPE AND LIFE | Single lithium-ion rechargeable standard; 6 h life |
| POWER REQUIREMENTS | AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz |
| DISPLAY TYPE | Full VGA (640 × 480 pixels) transflective color LCD, 60 Hz update rate |
| DISPLAY DIMENSIONS (W × H, DIAG.) | 117 mm × 89 mm, 146 mm (4.62 in. × 3.49 in., 5.76 in.) |
| OVERALL DIMENSIONS (W × H × D) | 209 mm x 128 mm x 36 mm, 58 mm at hand grip (8.2 in. x 5 in. x 1.4 in., 2.3 in. at hand grip) |
| WEIGHT | 890 g (1.95 lb), including lithium-ion battery |
Innovative TFM
Better flaw imaging brings clarity and resolution to smaller defects
Image early-stage high-temperature hydrogen attack (HTHA) to detect it when it matters most
Onboard acoustic influence map (AIM) reflectivity simulator helps you visualize TFM sensitivity and adjust accordingly
Up to four TFM modes facilitates flaw interpretation and sizing
Improved Phased Array
Twice as fast as the OmniScan MX2 (pulse repetition frequency)
Single TOFD menu for accelerated workflow
Improved fast phased array calibration minimizes frustration
800% high amplitude range reduces the need to rescan
Onboard Dual Linear Array and Dual Matrix Array probe support accelerates setup creation
Get to Work, Quickly
The onboard scan plan, improved fast calibration, and streamlined user interface help eliminate unnecessary steps so that you can complete your inspection setup in minimal time.If you’re an existing OmniScan user, the transition from the MX2 is fast. If you’re new to phased array ultrasonic testing or TFM, the OmniScan X3 flaw detector is easy to learn.
The Reliability You Trust
IP65 certified rain and dust proof
Onboard GPS provides the location of data
Connect wirelessly to the Olympus Scientific Cloud to download the latest software
Scan without stopping thanks to the 25 GB file size
Features:
- Powerful software that’s intuitive for new and existing OmniScan users with a modern, simplified menu structure that minimizes button presses.
- Live TFM Envelope Processing. The instrument’s unique envelope processing provides clear, high-resolution TFM images of flaws.
- Facilitate Flaw Interpretation and Sizing. Using different TFM modes (wave sets) in the same inspection provides more chances to detect oddly oriented indications.
- Confirm Your Coverage in Advance. The acoustic influence map (AIM) tool provides you with an instant visual model of the sensitivity based on your TFM mode, probe, settings, and simulated reflector.
- Get to Work, Quickly. The onboard scan plan tool helps you visualize your inspection before you begin.
- Improved Fast Calibration. The OmniScan X3 calibration menus track the signals at high speed.
- You can perform multiple group calibrations in minutes with minimal frustration
- Harness the Power of Your PC. OmniPC software offers a suite of advanced tools, such as a side-by-side view that enables you to compare two files onscreen at the same time to maximize the power of your PC when analyzing data.
Olympus OmniScan X3 Phased Array Flaw Detector Applications:
- In-service and construction welding
- Pressure vessels
- Process pipes
- Wind tower
- Structural construction
- Corrosion-resistant alloys and cladded materials (austenitic, nickel, and other coarse-grained materials)
The OmniScan SX touch screen offers a full-screen mode option that maximizes visibility, essentially converting many menu functions into easy touch-screen operations. The intuitive interface provides smooth menu selection, zooming, gate adjustments, cursor movements, and text and value input. These, along with other premium integrated features, including easy-to-follow setup and calibration Wizards, a rapid refresh rate for both the S-scan and A-scan displays, and a fast pulse repetition frequency (PRF), make the OmniScan SX a highly efficient inspection tool.
Features:
- Cost-efficient, single-group
- Two-axis encoding and data archiving capacity
- Conventional UT, TOFD, and 16:64PR PA capabilities
- 8.4 in. (21.3 cm) touch screen with OmniScan interface
- Compact, lightweight design
This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance. The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.
The high-end, scalable platform is universally compatible with over 10 phased array and ultrasound modules, making the OmniScan MX2 ultrasonic flaw detector the confident choice for the future. When combined with other critical components from the complete range of solutions from Olympus, you can create a complete inspection system for your application-specific needs.
The OmniScan MX2 is available in 16 Channel and 32 Channel units for more demanding applications.
The optional Encoded B-Scan can be connected to the Olympus OmniScan MX2 ultrasonic flaw detector to capture and display the scanned thickness measurements along the distance of internally corroded pipe or tank walls. This powerful, time-saving option allows users to select between bidirectional and unidirectional modes, and can store up to 10,000 thickness readings.
Key Features
- Aperture: 16
- Number of elements: 128
- Bright, large touch screen
- New phased array and TOFD modules
- New NDT setupBuilder design software
- New OmniPC analysis software
Applications
- Phased array weld inspection
- ToFD weld inspection
- P/E weld inspection
- General component inspection
- Pressure vessel inspection
- Composite inspection
- Corrosion mapping inspection
- Multi-group inspection
Building on a Solid Basis
This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.
The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.
Faster Is Better!
Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its intuitive Weld Overlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 inch screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.
More than an Instrument —A Solution Provider
The OmniScan MX2 is an important part of your inspection solution, and can be combined with other critical components to form a complete inspection system. Olympus offers a complete product range that includes phased array probes, scanners, analysis software, and accessories, all of which are integrated and packaged into rapidly deployable, application specific solutions for quick returns on your investment. In addition, Olympus offers a high-quality calibration and repair service worldwide, that is backed by a team of phased array application experts to ensure that you get the support you need.
Weld Inspection of Small-Diameter Pipes
When coupled with the COBRA manual scanner, the OmniScan flaw detector is capable of inspecting pipes ranging from 0.84 inch OD to 4.5 inch OD. With its very slim design, this manual scanner is able to inspect pipes in areas with limited access.
Pressure Vessel Weld Inspection
A complete inspection of pressure vessel welds can be performed manually, or in a single scan using an OmniScan and a scanner for a turnkey solution. Inspection results are available immediately, enabling you to detect problems with welding equipment and fix them right away
Composite Inspection
Olympus offers complete solutions for the inspection of carbon-fiberreinforced polymer structures. These solutions are based on the OmniScan flaw detector, the GLIDER scanner, and dedicated probes and wedges designed for CFRP flat panel and radius inspection.
The OmniScan PA system with the HydroFORM scanner is designed to offer the best inspection solution for the detection of wall-thickness reductions resulting from corrosion, abrasion, and erosion. For this application, phased array ultrasound technology offers superior inspection speed, data point density, and detection.
Come with :
- Omniscan MX2 32:128 Phased Array Flaw Detector
- Tomoview Software
- Charger/Cables
- 2 Batteries
- SD Card
- Software Card Reader
- Rolling Hard Case
- Manual
-Omniscan MX2 32:128 Phased Array Flaw Detector
-Tomoview Software
-Charger/Cables
-2 Batteries
-SD Card
-Software Card Reader
-Rolling Hard Case
-Manual
The Olympus Vanta C Series XRF Analyzer is a handheld X-ray flourescence tester that fuses speed, a wide elemental range and and low limits of detection. Vanta C Series models are equipped with a silicon drift detector and a 40 kV X-ray tube with a rhodium (Rh) anode. Ideal for scrap sorting, PMI, geochemistry, mining, jewelry ID, soil analysis and an array of other applications, the Vanta C Series adheres to IP65 and MIL-STD 810G standards. Features include SmartSort, which shortens or lengthens test time based on material, and real-time grade matching notifications.
Kit contents
- Vanta C series XRF
- 2 batteries and charger
- Docking station and accessories
Required skills & qualifications
- Proof of radiation safety training and X-ray safety training
- Written approval from your radiation safety officer
- Proven experience with similar equipment (signed off by supervisor)
- Full liability insurance
Additional considerations
- User will need to provide completed radiation risk assessment
- User must not be pregnant/breastfeeding while using this equipment
- Equipment must be used in controlled lab
- Only to be used by people named in hire agreement
- Needs secure storage when not in use
- Further training and support can be provided upon request
Olympus Vanta C Series Specifications
| DIMENSIONS (W X H X D) | 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) |
|---|---|
| WEIGHT | 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery |
| EXCITATION SOURCE | 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W)) (Ag): 8–50 kV (Rh W): 8–40 kV |
| PRIMARY BEAM FILTRATION | 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot |
| DETECTOR | Silicon drift detector |
| POWER | Removable 14.4 V Li-ion battery with hot-swap capability or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max |
| DISPLAY | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| OPERATING ENVIRONMENT | Temperature range : −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity non-condensing |
| DROP TEST | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP RATING AND DETECTOR SHUTTER | IP55: dust protected and protected against water jets from all directions Solid detector shutter to help prevent detector damage |
| PRESSURE CORRECTION | Built-in barometer for automatic altitude and air density correction |
| GPS | Embedded GPS / GLONASS receiver |
| OPERATING SYSTEM | Linux Cloud enabled with user fleet manager capability |
| DATA STORAGE | microSD slot with removable 1 GB industrial SD card included |
| USB | (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer. |
| WIRELESS LAN | Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor |
| BLUETOOTH | Supports Bluetooth with an optional USB adaptor |
| AIMING CAMERA | Full VGA CMOS camera (Optional) |
| PANORAMA CAMERA | 5-megapixel CMOS camera with autofocus lens |
| WARRANTY | Three-year warranty |
| SELECTED OPTIONAL ACCESSORIES | Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, Probe Shield |
Vanta handheld XRF analyzers are built to be tough. Their rugged, durable design makes them resistant to damage in challenging industrial environments for greater uptime and a lower cost of ownership.
With an intuitive user interface and customizable software, the Vanta XRF series is easy to use with minimal training for high throughput and a fast return on investment. Featuring innovative and proprietary Axon Technology, Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions.
- Exceptionally durable under extreme conditions.
- Superior analytics.
- Optional wireless LAN and Bluetooth for real-time data sharing. Cloud technology enabled.
- Intuitive user interface.
Confidently Verify and Sort Metals and Alloys
The Vanta Element alloy database includes the most commonly used alloys in scrap recycling and manufacturing, but is easily customized for proprietary or additional grades.
- Non-ferrous alloys
- Low-alloy steels
- Copper alloys
- Nickel and high-temp alloys
- Precious metals
- Aluminum alloys
Powerful Processing
- Vanta electronics
- Axon Technology stability and count rate
Convenient Data Management
- Wireless data transfer to a network folder (optional)
- Cloud data storage and real-time remote data viewing using the Olympus Scientific Cloud
- Direct export to a USB drive
- 1 GB microSD card for storing results
Specifications Olympus Vanta Element XRF Analyzer :
Dimensions (W × H × D) : 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.)
Weight : 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
Excitation Source : 2-watt X-ray tube with 35 kV tungsten anode
Primary Beam Filtration : Fixed aluminum filter wheel
Detector : Silicon PIN detector
Power : Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Display : 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
Operating Environment : Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle
Humidity: 10% to 90% relative humidity noncondensing
Drop Test : Military Standard 810-G 4-foot (1.3 M) drop test
IP Rating and Detector Shutter : IP54: dust protected and protected against water splashing from all directions
Operating System : Linux
Data Storage : microSD slot with removable 1 GB Industrial SD card included
USB : (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth, and USB flash drives
(1) USB 2.0 type mini-B port cable for connection to computer
Wireless LAN : Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor
Bluetooth : Supports Bluetooth with an optional USB adaptor
The EPOCH XT allows the operator access to a wide variety of standard pulser and receiver features that make the unit flexible to a large number of flaw detector applications. With up to 475V pulse energy combined with Olympus NDT’s PerfectSquare tunable square wave pulser, the EPOCH XT is capable of high penetration applications beyond the standard flaw detector. And with an arsenal of optional software features, the instrument can be enhanced to meet the needs of nearly any conventional ultrasonic inspector.
Features:
- Proven Ultrasonic Performance
- Broad Application Use
- Direct Access Interface
- EN12668-1 Compliant
- Tested for explosive atmosphere, vibration and shock
- Designed to meet IP67 requirements to withstand harsh environments
- Direct access hand-held design
- Split screen view of A-scan and parameters for fast calibration verification
- Onboard DGS/AVG feature
- Multiple battery options – can be used with lithium-ion, NiMH, or C-cells
- Host USB port for direct printing and storage to USB drives
- Client USB Port for PC communication
- Wide pulse voltage range from 50V to 475V
- Powerful alphanumeric data logger: Corrosion thickness gauge file types can be set up onboard.
- Simple incremental and calibration files
- Multicolor LCD
- Lightweight – 2.1 kg (4.7 lb)
Loaded with Practical Measurement Features
- The EPOCH XT incorporates many standard measurement features including a tunable square wave pulser, selectable narrow-band and broad-band digital filters, gain range from 0 to 110 dB, peak memory and peak hold, adjustable PRF, 0.001 in. (0.01 mm) measurement resolution, and two gates with programmable alarms. In addition, the unit offers many standard and optional application-specific software features: Dynamic DAC/TVG (Distance Amplitude Correction/ Time Varied Gain), On-board DGS/AVG, AWS D1.1 & D1.5, Curved Surface Correction, and GageView Pro.
- Standard tunable Square Wave pulser with PerfectSquare Technology allows the operator to adjust pulse width to maximize transducer performance
- Standard digital receiver filtering-broadband, several narrow band settings, and a high-pass setting.
- Five measurement displays that are fully customizable to meet inspection needs. Select any Gate
- 1 or Gate 2 measurement for each display box
- Amplitude measurement resolution of 0.25% full screen height
- Amplitude measurement from 0% to 110% full screen height
- Gate measurement modes: Peak, Edge and NEW First Peak Mode for thickness measurement applications
- Measurement rate adjustable from
- 10 Hz to 1000 Hz in 10 Hz increments on live screen
- Peak Mem and Peak Hold functions in all rectified modes. Peak Hold also functions in RF mode
- New Grid Display Modes
Standard 1-10
Soundpath
Leg mode for angle beam inspection
Selectable 100% or 110% vertical display - Leg indicator and measurement mode indicator for each gate
- Alarm indicator for each gate
The Olympus (Panametrics) Epoch XT is an advanced, portable ultrasonic flaw detector offering many standard measurement features including a tunable square wave pulser, selectable narrow-band and broad-band digital filters, gain range from 0 to 110 dB, peak memory and peak hold, and adjustable PRF.
The EPOCH XT allows the operator access to a wide variety of standard pulser and receiver features that make the unit flexible to a large number of flaw detector applications. With up to 475V pulse energy combined with Olympus NDT’s PerfectSquare tunable square wave pulser, the EPOCH XT is capable of high penetration applications beyond the standard flaw detector. And with an arsenal of optional software features, the instrument can be enhanced to meet the needs of nearly any conventional ultrasonic inspector.
Features:
- Proven Ultrasonic Performance
- Broad Application Use
- Direct Access Interface
- EN12668-1 Compliant
- Tested for explosive atmosphere, vibration and shock
- Designed to meet IP67 requirements to withstand harsh environments
- Direct access hand-held design
- Split screen view of A-scan and parameters for fast calibration verification
- Onboard DGS/AVG feature
- Multiple battery options – can be used with lithium-ion, NiMH, or C-cells
- Host USB port for direct printing and storage to USB drives
- Client USB Port for PC communication
- Wide pulse voltage range from 50V to 475V
- Powerful alphanumeric data logger: Corrosion thickness gauge file types can be set up onboard.
- Simple incremental and calibration files
- Multicolor LCD
- Lightweight – 2.1 kg (4.7 lb)
Loaded with Practical Measurement Features
- The EPOCH XT incorporates many standard measurement features including a tunable square wave pulser, selectable narrow-band and broad-band digital filters, gain range from 0 to 110 dB, peak memory and peak hold, adjustable PRF, 0.001 in. (0.01 mm) measurement resolution, and two gates with programmable alarms. In addition, the unit offers many standard and optional application-specific software features: Dynamic DAC/TVG (Distance Amplitude Correction/ Time Varied Gain), On-board DGS/AVG, AWS D1.1 & D1.5, Curved Surface Correction, and GageView Pro.
- Standard tunable Square Wave pulser with PerfectSquare Technology allows the operator to adjust pulse width to maximize transducer performance
- Standard digital receiver filtering-broadband, several narrow band settings, and a high-pass setting.
- Five measurement displays that are fully customizable to meet inspection needs. Select any Gate
- 1 or Gate 2 measurement for each display box
- Amplitude measurement resolution of 0.25% full screen height
- Amplitude measurement from 0% to 110% full screen height
- Gate measurement modes: Peak, Edge and NEW First Peak Mode for thickness measurement applications
- Measurement rate adjustable from
- 10 Hz to 1000 Hz in 10 Hz increments on live screen
- Peak Mem and Peak Hold functions in all rectified modes. Peak Hold also functions in RF mode
- New Grid Display Modes
Standard 1-10
Soundpath
Leg mode for angle beam inspection
Selectable 100% or 110% vertical display - Leg indicator and measurement mode indicator for each gate
- Alarm indicator for each gate
- Olympus Epoch 1000i Ultrasonic Flaw Detector
- Installed Options:
- 16:64 Phased Array
- Olympus Probe MB4FE 57905/4961/4MHz
- RS232 Power Cable P/N: 704-889-01
- BNC Cable
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- Hard Copy User Manual
- Hard Carrying Case (G)
The EPOCH 1000 Series Digital Ultrasonic Flaw Detectors combines the highest level of performance for conventional portable flaw detection with the power of phased array imaging. The EPOCH 1000, 1000 iR and 1000 i feature a new horizontal case style with full VGA display, knob and navigation arrows for parameter adjustment, and full EN12668‑1 compliance. The advanced conventional ultrasonic functionality of the EPOCH 1000 series is augmented in the EPOCH 1000 i with phased array imaging capabilities.
Key Features:
- Available with Phased Array Imaging Package
- EN12668-1 compliant
- 37 digital receiver filter selections
- 6 kHz pulse repetition rate for high speed scanning
- Encoded or time-based C-scan option
- Automatic phased array probe recognition
- Intuitive wedge delay and sensitivity calibration for all focal laws
- Programmable analog/alarm outputs
- Designed for IP66 environmental rating
- Horizontal design with navigation panel and knob parameter adjustment
- Digital high dynamic range receiver
- Full VGA sunlight readable display
- ClearWave visual enhancement package for conventional A-scan interpretation
- SureView visualization feature
- Reference and measurement cursors
- Standard dynamic DAC/TVG
- Standard onboard DGS/AVG
Key Industries and Applications:
- General weld inspection
- Crack detection and sizing
- Power generation inspections
- AWS D1.1/D1.5 weld inspection
- Casting and forging defect inspections
- DGS/AVG defect sizing
- In-line inspections
- Composite delamination and defect inspections
- Aerospace and maintenance
- Automotive and transportation
Come With
- Olympus Epoch 1000i Ultrasonic Flaw Detector
- Installed Options:
- 16:64 Phased Array
- Olympus Probe MB4FE 57905/4961/4MHz
- RS232 Power Cable P/N: 704-889-01
- BNC Cable
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- Hard Copy User Manual
- Hard Carrying Case (G)
